1. Product Principles and Crystallographic Residence
1.1 Phase Structure and Polymorphic Behavior

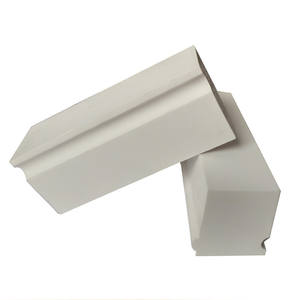

(Alumina Ceramic Blocks)
Alumina (Al ₂ O ₃), especially in its α-phase kind, is among the most widely made use of technological ceramics because of its superb balance of mechanical strength, chemical inertness, and thermal stability.
While aluminum oxide exists in numerous metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically steady crystalline structure at heats, defined by a thick hexagonal close-packed (HCP) arrangement of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial websites.
This gotten structure, known as diamond, gives high latticework power and strong ionic-covalent bonding, resulting in a melting point of about 2054 ° C and resistance to phase makeover under extreme thermal problems.
The change from transitional aluminas to α-Al two O five commonly occurs over 1100 ° C and is gone along with by substantial volume contraction and loss of surface area, making phase control critical throughout sintering.
High-purity α-alumina blocks (> 99.5% Al Two O SIX) exhibit exceptional performance in severe atmospheres, while lower-grade structures (90– 95%) might consist of additional phases such as mullite or glazed grain limit phases for cost-effective applications.
1.2 Microstructure and Mechanical Honesty
The performance of alumina ceramic blocks is exceptionally influenced by microstructural functions including grain size, porosity, and grain boundary communication.
Fine-grained microstructures (grain dimension < 5 µm) normally give higher flexural strength (up to 400 MPa) and boosted fracture durability compared to grainy counterparts, as smaller grains hamper split proliferation.
Porosity, even at low degrees (1– 5%), significantly minimizes mechanical stamina and thermal conductivity, demanding full densification via pressure-assisted sintering approaches such as warm pushing or warm isostatic pushing (HIP).
Additives like MgO are usually introduced in trace amounts (≈ 0.1 wt%) to prevent abnormal grain growth during sintering, making certain uniform microstructure and dimensional security.
The resulting ceramic blocks show high firmness (≈ 1800 HV), excellent wear resistance, and reduced creep prices at elevated temperatures, making them appropriate for load-bearing and abrasive environments.
2. Manufacturing and Handling Techniques
( Alumina Ceramic Blocks)
2.1 Powder Preparation and Shaping Approaches
The production of alumina ceramic blocks begins with high-purity alumina powders originated from calcined bauxite by means of the Bayer process or synthesized through precipitation or sol-gel routes for higher purity.
Powders are crushed to attain slim particle dimension distribution, boosting packaging thickness and sinterability.
Forming right into near-net geometries is accomplished through different forming methods: uniaxial pushing for easy blocks, isostatic pushing for uniform density in complex forms, extrusion for long sections, and slip casting for detailed or large components.
Each approach affects green body density and homogeneity, which straight effect final residential or commercial properties after sintering.
For high-performance applications, progressed developing such as tape casting or gel-casting might be used to accomplish remarkable dimensional control and microstructural uniformity.
2.2 Sintering and Post-Processing
Sintering in air at temperatures between 1600 ° C and 1750 ° C allows diffusion-driven densification, where fragment necks expand and pores diminish, resulting in a fully dense ceramic body.
Atmosphere control and exact thermal accounts are essential to protect against bloating, warping, or differential contraction.
Post-sintering operations consist of ruby grinding, lapping, and brightening to achieve tight resistances and smooth surface area finishes called for in securing, gliding, or optical applications.
Laser reducing and waterjet machining permit specific modification of block geometry without generating thermal anxiety.
Surface therapies such as alumina finish or plasma splashing can better improve wear or rust resistance in specific solution problems.
3. Practical Characteristics and Efficiency Metrics
3.1 Thermal and Electrical Actions
Alumina ceramic blocks exhibit moderate thermal conductivity (20– 35 W/(m · K)), substantially higher than polymers and glasses, making it possible for reliable heat dissipation in digital and thermal management systems.
They keep structural honesty up to 1600 ° C in oxidizing environments, with low thermal expansion (≈ 8 ppm/K), contributing to superb thermal shock resistance when appropriately created.
Their high electric resistivity (> 10 ¹⁴ Ω · cm) and dielectric strength (> 15 kV/mm) make them perfect electric insulators in high-voltage atmospheres, including power transmission, switchgear, and vacuum systems.
Dielectric consistent (εᵣ ≈ 9– 10) continues to be secure over a wide frequency array, sustaining use in RF and microwave applications.
These residential or commercial properties enable alumina blocks to function accurately in atmospheres where natural materials would weaken or stop working.
3.2 Chemical and Environmental Resilience
One of the most important qualities of alumina blocks is their outstanding resistance to chemical assault.
They are very inert to acids (other than hydrofluoric and hot phosphoric acids), antacid (with some solubility in solid caustics at elevated temperatures), and molten salts, making them suitable for chemical processing, semiconductor construction, and air pollution control devices.
Their non-wetting behavior with many molten steels and slags permits use in crucibles, thermocouple sheaths, and furnace linings.
Additionally, alumina is safe, biocompatible, and radiation-resistant, expanding its energy right into medical implants, nuclear protecting, and aerospace components.
Very little outgassing in vacuum cleaner settings additionally certifies it for ultra-high vacuum (UHV) systems in research study and semiconductor manufacturing.
4. Industrial Applications and Technological Combination
4.1 Architectural and Wear-Resistant Parts
Alumina ceramic blocks function as vital wear elements in sectors varying from extracting to paper production.
They are made use of as liners in chutes, hoppers, and cyclones to resist abrasion from slurries, powders, and granular materials, significantly expanding service life contrasted to steel.
In mechanical seals and bearings, alumina obstructs supply low rubbing, high solidity, and deterioration resistance, minimizing upkeep and downtime.
Custom-shaped blocks are incorporated right into cutting devices, dies, and nozzles where dimensional security and edge retention are paramount.
Their light-weight nature (thickness ≈ 3.9 g/cm ³) additionally adds to energy savings in moving parts.
4.2 Advanced Design and Emerging Utilizes
Beyond conventional roles, alumina blocks are significantly used in sophisticated technical systems.
In electronic devices, they work as shielding substratums, warm sinks, and laser dental caries elements because of their thermal and dielectric residential or commercial properties.
In energy systems, they act as strong oxide gas cell (SOFC) components, battery separators, and fusion activator plasma-facing materials.
Additive production of alumina by means of binder jetting or stereolithography is emerging, allowing intricate geometries previously unattainable with conventional developing.
Crossbreed structures integrating alumina with steels or polymers via brazing or co-firing are being established for multifunctional systems in aerospace and protection.
As material scientific research developments, alumina ceramic blocks continue to advance from easy structural aspects into energetic parts in high-performance, sustainable engineering remedies.
In summary, alumina ceramic blocks represent a fundamental course of advanced ceramics, combining durable mechanical efficiency with phenomenal chemical and thermal stability.
Their flexibility throughout industrial, digital, and scientific domain names underscores their enduring worth in contemporary engineering and innovation advancement.
