1. Basic Composition and Structural Characteristics of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Shift

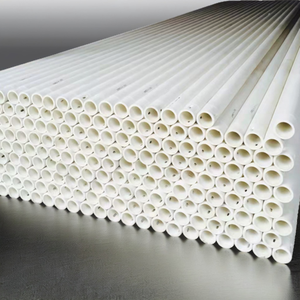

(Quartz Ceramics)
Quartz porcelains, likewise referred to as merged silica or merged quartz, are a class of high-performance not natural products stemmed from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) form.
Unlike standard ceramics that depend on polycrystalline frameworks, quartz ceramics are identified by their total absence of grain boundaries due to their glazed, isotropic network of SiO ₄ tetrahedra interconnected in a three-dimensional random network.
This amorphous framework is achieved through high-temperature melting of all-natural quartz crystals or artificial silica precursors, adhered to by rapid air conditioning to avoid condensation.
The resulting material includes commonly over 99.9% SiO ₂, with trace pollutants such as alkali metals (Na ⁺, K ⁺), light weight aluminum, and iron kept at parts-per-million levels to preserve optical quality, electric resistivity, and thermal efficiency.
The lack of long-range order removes anisotropic actions, making quartz porcelains dimensionally stable and mechanically consistent in all instructions– a vital advantage in precision applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
One of one of the most defining features of quartz ceramics is their remarkably low coefficient of thermal growth (CTE), generally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero expansion emerges from the versatile Si– O– Si bond angles in the amorphous network, which can adjust under thermal tension without breaking, enabling the material to endure quick temperature level changes that would fracture conventional ceramics or metals.
Quartz porcelains can withstand thermal shocks going beyond 1000 ° C, such as direct immersion in water after warming to red-hot temperature levels, without cracking or spalling.
This home makes them essential in atmospheres including repeated home heating and cooling cycles, such as semiconductor handling heating systems, aerospace parts, and high-intensity illumination systems.
Additionally, quartz ceramics maintain architectural honesty approximately temperature levels of around 1100 ° C in continual service, with temporary exposure resistance coming close to 1600 ° C in inert environments.
( Quartz Ceramics)
Past thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and exceptional resistance to devitrification– though prolonged exposure above 1200 ° C can start surface area crystallization into cristobalite, which may endanger mechanical strength as a result of volume adjustments throughout stage transitions.
2. Optical, Electrical, and Chemical Features of Fused Silica Systems
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their remarkable optical transmission across a wide spooky array, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is allowed by the absence of pollutants and the homogeneity of the amorphous network, which decreases light scattering and absorption.
High-purity synthetic integrated silica, generated through flame hydrolysis of silicon chlorides, achieves also better UV transmission and is utilized in essential applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages threshold– withstanding failure under extreme pulsed laser irradiation– makes it excellent for high-energy laser systems utilized in fusion research and commercial machining.
Furthermore, its reduced autofluorescence and radiation resistance make certain integrity in scientific instrumentation, consisting of spectrometers, UV treating systems, and nuclear surveillance gadgets.
2.2 Dielectric Performance and Chemical Inertness
From an electrical standpoint, quartz porcelains are exceptional insulators with volume resistivity going beyond 10 ¹⁸ Ω · centimeters at area temperature level and a dielectric constant of roughly 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) guarantees marginal energy dissipation in high-frequency and high-voltage applications, making them appropriate for microwave home windows, radar domes, and insulating substrates in digital assemblies.
These residential properties remain steady over a wide temperature variety, unlike many polymers or standard ceramics that weaken electrically under thermal anxiety.
Chemically, quartz porcelains show impressive inertness to most acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the security of the Si– O bond.
Nevertheless, they are susceptible to assault by hydrofluoric acid (HF) and solid antacids such as hot salt hydroxide, which damage the Si– O– Si network.
This careful reactivity is made use of in microfabrication procedures where regulated etching of integrated silica is called for.
In hostile commercial atmospheres– such as chemical processing, semiconductor wet benches, and high-purity liquid handling– quartz ceramics work as linings, sight glasses, and activator elements where contamination have to be reduced.
3. Production Processes and Geometric Design of Quartz Ceramic Parts
3.1 Melting and Creating Techniques
The manufacturing of quartz ceramics entails several specialized melting techniques, each tailored to details purity and application demands.
Electric arc melting makes use of high-purity quartz sand melted in a water-cooled copper crucible under vacuum or inert gas, producing huge boules or tubes with outstanding thermal and mechanical residential properties.
Flame fusion, or burning synthesis, entails melting silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen fire, transferring fine silica fragments that sinter right into a clear preform– this method yields the highest optical top quality and is made use of for artificial fused silica.
Plasma melting provides an alternate course, supplying ultra-high temperature levels and contamination-free handling for particular niche aerospace and protection applications.
As soon as melted, quartz ceramics can be shaped through precision casting, centrifugal creating (for tubes), or CNC machining of pre-sintered spaces.
Due to their brittleness, machining needs diamond devices and careful control to stay clear of microcracking.
3.2 Accuracy Manufacture and Surface Finishing
Quartz ceramic components are often produced right into complicated geometries such as crucibles, tubes, rods, windows, and personalized insulators for semiconductor, photovoltaic or pv, and laser industries.
Dimensional accuracy is vital, particularly in semiconductor production where quartz susceptors and bell jars should maintain exact alignment and thermal uniformity.
Surface completing plays an essential function in efficiency; sleek surfaces minimize light spreading in optical components and decrease nucleation sites for devitrification in high-temperature applications.
Engraving with buffered HF remedies can produce controlled surface structures or remove damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleaned and baked to remove surface-adsorbed gases, ensuring marginal outgassing and compatibility with sensitive procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Function in Semiconductor and Photovoltaic Production
Quartz porcelains are fundamental materials in the fabrication of incorporated circuits and solar cells, where they work as furnace tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to withstand high temperatures in oxidizing, decreasing, or inert ambiences– incorporated with reduced metal contamination– makes certain procedure pureness and return.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz components preserve dimensional stability and resist bending, stopping wafer breakage and imbalance.
In photovoltaic or pv manufacturing, quartz crucibles are utilized to grow monocrystalline silicon ingots using the Czochralski process, where their pureness directly affects the electrical high quality of the last solar batteries.
4.2 Usage in Lighting, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sanitation systems, quartz ceramic envelopes include plasma arcs at temperatures going beyond 1000 ° C while transmitting UV and noticeable light successfully.
Their thermal shock resistance stops failing throughout quick lamp ignition and shutdown cycles.
In aerospace, quartz ceramics are utilized in radar windows, sensor real estates, and thermal security systems due to their low dielectric constant, high strength-to-density ratio, and stability under aerothermal loading.
In logical chemistry and life sciences, integrated silica veins are vital in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness prevents example adsorption and ensures precise separation.
Furthermore, quartz crystal microbalances (QCMs), which rely upon the piezoelectric residential properties of crystalline quartz (distinctive from integrated silica), use quartz porcelains as safety real estates and insulating supports in real-time mass picking up applications.
Finally, quartz porcelains represent an unique intersection of severe thermal resilience, optical openness, and chemical purity.
Their amorphous framework and high SiO two web content enable performance in settings where conventional materials fail, from the heart of semiconductor fabs to the side of area.
As innovation advances towards higher temperatures, higher accuracy, and cleaner processes, quartz porcelains will continue to act as an important enabler of development throughout science and market.
