1. Product Structures and Collaborating Layout
1.1 Innate Residences of Component Phases

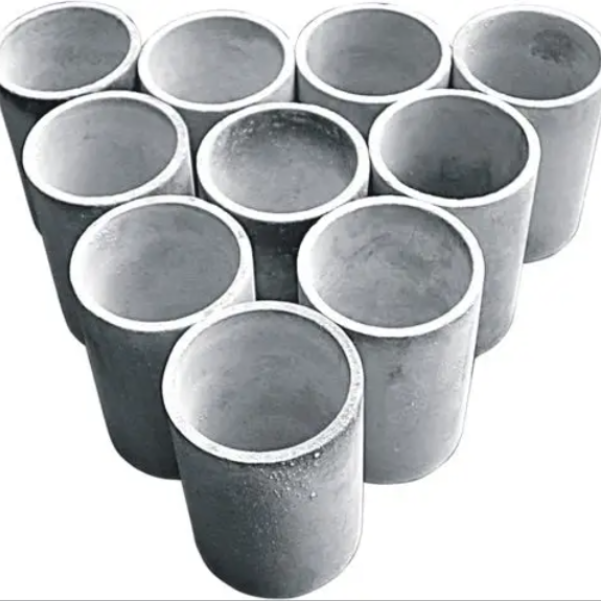

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si ₃ N FOUR) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their phenomenal efficiency in high-temperature, corrosive, and mechanically requiring environments.
Silicon nitride exhibits impressive crack sturdiness, thermal shock resistance, and creep stability due to its special microstructure made up of elongated β-Si six N four grains that enable split deflection and connecting mechanisms.
It keeps toughness as much as 1400 ° C and possesses a fairly reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), minimizing thermal stress and anxieties during fast temperature level adjustments.
On the other hand, silicon carbide offers remarkable firmness, thermal conductivity (up to 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it excellent for abrasive and radiative warm dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) likewise gives excellent electric insulation and radiation resistance, beneficial in nuclear and semiconductor contexts.
When incorporated into a composite, these materials show complementary actions: Si ₃ N four improves toughness and damages resistance, while SiC boosts thermal management and use resistance.
The resulting hybrid ceramic achieves an equilibrium unattainable by either phase alone, developing a high-performance architectural product customized for severe service problems.
1.2 Compound Style and Microstructural Engineering
The style of Si six N FOUR– SiC composites includes exact control over phase distribution, grain morphology, and interfacial bonding to maximize collaborating effects.
Generally, SiC is introduced as great particulate reinforcement (varying from submicron to 1 µm) within a Si two N ₄ matrix, although functionally rated or split architectures are also explored for specialized applications.
During sintering– normally through gas-pressure sintering (GENERAL PRACTITIONER) or hot pressing– SiC particles affect the nucleation and growth kinetics of β-Si four N ₄ grains, often promoting finer and more uniformly oriented microstructures.
This refinement improves mechanical homogeneity and lowers flaw dimension, contributing to improved toughness and reliability.
Interfacial compatibility between the two stages is vital; because both are covalent ceramics with comparable crystallographic symmetry and thermal development actions, they develop coherent or semi-coherent boundaries that withstand debonding under tons.
Additives such as yttria (Y ₂ O FIVE) and alumina (Al two O ₃) are utilized as sintering aids to promote liquid-phase densification of Si five N four without jeopardizing the security of SiC.
Nevertheless, too much second stages can deteriorate high-temperature performance, so make-up and handling need to be enhanced to reduce lustrous grain boundary films.
2. Processing Strategies and Densification Obstacles
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Techniques
High-quality Si Three N ₄– SiC composites start with uniform mixing of ultrafine, high-purity powders making use of damp sphere milling, attrition milling, or ultrasonic dispersion in organic or liquid media.
Attaining consistent diffusion is important to stop cluster of SiC, which can work as anxiety concentrators and decrease crack sturdiness.
Binders and dispersants are contributed to stabilize suspensions for forming techniques such as slip spreading, tape casting, or shot molding, depending upon the preferred element geometry.
Green bodies are after that meticulously dried and debound to eliminate organics prior to sintering, a procedure requiring regulated heating prices to avoid breaking or deforming.
For near-net-shape manufacturing, additive methods like binder jetting or stereolithography are arising, allowing complicated geometries previously unreachable with typical ceramic handling.
These techniques require tailored feedstocks with optimized rheology and environment-friendly strength, usually involving polymer-derived ceramics or photosensitive resins packed with composite powders.
2.2 Sintering Mechanisms and Phase Security
Densification of Si Five N ₄– SiC compounds is challenging because of the strong covalent bonding and restricted self-diffusion of nitrogen and carbon at practical temperature levels.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y ₂ O ₃, MgO) lowers the eutectic temperature level and improves mass transport through a short-term silicate thaw.
Under gas pressure (typically 1– 10 MPa N ₂), this thaw facilitates rearrangement, solution-precipitation, and final densification while suppressing decomposition of Si two N FOUR.
The presence of SiC impacts thickness and wettability of the liquid phase, possibly modifying grain growth anisotropy and final texture.
Post-sintering warm treatments might be applied to take shape residual amorphous stages at grain boundaries, boosting high-temperature mechanical homes and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly utilized to validate stage pureness, absence of unfavorable additional phases (e.g., Si two N TWO O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Toughness, Sturdiness, and Exhaustion Resistance
Si Four N FOUR– SiC compounds demonstrate remarkable mechanical efficiency compared to monolithic ceramics, with flexural staminas surpassing 800 MPa and crack toughness values getting to 7– 9 MPa · m ¹/ TWO.
The enhancing result of SiC particles impedes dislocation motion and split breeding, while the lengthened Si six N ₄ grains continue to give toughening with pull-out and linking mechanisms.
This dual-toughening strategy results in a product highly immune to influence, thermal biking, and mechanical exhaustion– important for rotating components and structural components in aerospace and energy systems.
Creep resistance stays exceptional up to 1300 ° C, attributed to the security of the covalent network and lessened grain limit gliding when amorphous phases are minimized.
Hardness worths commonly range from 16 to 19 Grade point average, offering excellent wear and disintegration resistance in rough settings such as sand-laden flows or moving contacts.
3.2 Thermal Monitoring and Ecological Resilience
The enhancement of SiC significantly raises the thermal conductivity of the composite, often increasing that of pure Si two N ₄ (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC content and microstructure.
This boosted warm transfer capability permits more effective thermal monitoring in components subjected to intense local home heating, such as burning liners or plasma-facing components.
The composite keeps dimensional stability under high thermal gradients, resisting spallation and splitting because of matched thermal development and high thermal shock criterion (R-value).
Oxidation resistance is one more vital advantage; SiC creates a protective silica (SiO ₂) layer upon exposure to oxygen at elevated temperature levels, which better densifies and seals surface area issues.
This passive layer safeguards both SiC and Si Two N FOUR (which likewise oxidizes to SiO two and N ₂), ensuring long-term resilience in air, heavy steam, or combustion ambiences.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Solution
Si Two N FOUR– SiC compounds are progressively released in next-generation gas wind turbines, where they enable higher running temperatures, improved gas performance, and lowered cooling needs.
Parts such as turbine blades, combustor linings, and nozzle guide vanes gain from the material’s capacity to withstand thermal biking and mechanical loading without substantial destruction.
In nuclear reactors, particularly high-temperature gas-cooled reactors (HTGRs), these compounds serve as gas cladding or architectural assistances due to their neutron irradiation resistance and fission item retention ability.
In industrial settings, they are utilized in molten steel handling, kiln furniture, and wear-resistant nozzles and bearings, where traditional metals would stop working prematurely.
Their lightweight nature (density ~ 3.2 g/cm FOUR) also makes them attractive for aerospace propulsion and hypersonic vehicle elements based on aerothermal heating.
4.2 Advanced Manufacturing and Multifunctional Assimilation
Arising research study concentrates on creating functionally rated Si four N ₄– SiC frameworks, where make-up varies spatially to optimize thermal, mechanical, or electro-magnetic homes throughout a solitary element.
Hybrid systems including CMC (ceramic matrix composite) styles with fiber support (e.g., SiC_f/ SiC– Si Two N ₄) push the limits of damage resistance and strain-to-failure.
Additive production of these composites allows topology-optimized warmth exchangers, microreactors, and regenerative cooling channels with internal latticework structures unreachable by means of machining.
Furthermore, their inherent dielectric homes and thermal stability make them candidates for radar-transparent radomes and antenna windows in high-speed platforms.
As needs grow for materials that execute dependably under severe thermomechanical tons, Si five N FOUR– SiC compounds stand for an essential improvement in ceramic design, merging toughness with capability in a solitary, lasting system.
To conclude, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the strengths of 2 innovative ceramics to produce a hybrid system with the ability of flourishing in the most severe operational environments.
Their proceeded development will play a central role in advancing tidy energy, aerospace, and industrial modern technologies in the 21st century.
