1. Material Scientific Research and Structural Characteristic
1.1 Crystal Structure and Chemical Security

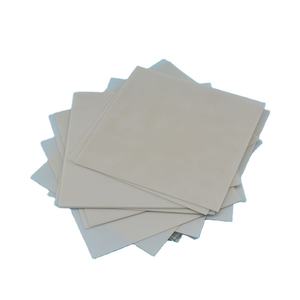

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a vast bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, composed of rotating layers of aluminum and nitrogen atoms adhered through solid covalent interactions.
This durable atomic arrangement enhances AlN with remarkable thermal stability, maintaining architectural stability as much as 2200 ° C in inert environments and standing up to decomposition under severe thermal cycling.
Unlike alumina (Al ₂ O TWO), AlN is chemically inert to thaw steels and many responsive gases, making it ideal for severe atmospheres such as semiconductor handling chambers and high-temperature heating systems.
Its high resistance to oxidation– developing only a slim safety Al two O four layer at surface upon exposure to air– makes sure long-lasting dependability without considerable degradation of bulk properties.
Furthermore, AlN shows excellent electric insulation with a resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric stamina over 30 kV/mm, crucial for high-voltage applications.
1.2 Thermal Conductivity and Electronic Qualities
One of the most defining attribute of aluminum nitride is its outstanding thermal conductivity, typically varying from 140 to 180 W/(m · K )for commercial-grade substrates– over five times greater than that of alumina (≈ 30 W/(m · K)).
This efficiency originates from the low atomic mass of nitrogen and aluminum, incorporated with strong bonding and marginal factor defects, which permit effective phonon transport with the lattice.
Nevertheless, oxygen impurities are especially detrimental; also trace amounts (above 100 ppm) replacement for nitrogen websites, producing light weight aluminum vacancies and spreading phonons, thereby substantially minimizing thermal conductivity.
High-purity AlN powders manufactured by means of carbothermal decrease or straight nitridation are necessary to accomplish ideal warm dissipation.
Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric residential or commercial properties make it useful in sensors and acoustic wave gadgets, while its broad bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency digital systems.
2. Construction Procedures and Production Challenges
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Producing high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, typically attained via responses such as Al Two O ₃ + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder has to be carefully crushed and doped with sintering help like Y ₂ O SIX, CaO, or uncommon planet oxides to advertise densification at temperatures between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These ingredients create short-term fluid phases that boost grain border diffusion, making it possible for full densification (> 99% academic density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich settings can even more lower oxygen material by getting rid of intergranular oxides, therefore bring back peak thermal conductivity.
Attaining uniform microstructure with regulated grain dimension is essential to stabilize mechanical toughness, thermal performance, and manufacturability.
2.2 Substrate Forming and Metallization
Once sintered, AlN ceramics are precision-ground and washed to satisfy limited dimensional resistances needed for electronic product packaging, usually down to micrometer-level flatness.
Through-hole exploration, laser cutting, and surface pattern allow combination into multilayer bundles and hybrid circuits.
A critical step in substratum fabrication is metallization– the application of conductive layers (normally tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper foils are bonded to AlN surface areas at elevated temperature levels in a regulated ambience, forming a solid user interface suitable for high-current applications.
Different methods like active steel brazing (AMB) utilize titanium-containing solders to improve bond and thermal exhaustion resistance, specifically under duplicated power biking.
Appropriate interfacial engineering makes sure low thermal resistance and high mechanical reliability in running devices.
3. Performance Advantages in Electronic Equipment
3.1 Thermal Management in Power Electronics
AlN substrates excel in managing warm created by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electric cars, renewable resource inverters, and telecommunications infrastructure.
Effective heat extraction protects against localized hotspots, minimizes thermal stress, and expands tool life time by reducing electromigration and delamination dangers.
Contrasted to standard Al ₂ O five substrates, AlN allows smaller bundle sizes and greater power thickness as a result of its remarkable thermal conductivity, permitting designers to push performance limits without jeopardizing integrity.
In LED illumination and laser diodes, where joint temperature level straight influences effectiveness and shade security, AlN substrates substantially boost luminescent outcome and functional lifespan.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) additionally closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical stress and anxiety throughout thermal biking.
3.2 Electrical and Mechanical Reliability
Past thermal efficiency, AlN offers low dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) across a broad frequency range, making it optimal for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature prevents dampness access, getting rid of deterioration risks in humid environments– a crucial benefit over organic substrates.
Mechanically, AlN possesses high flexural strength (300– 400 MPa) and solidity (HV ≈ 1200), making certain durability during handling, assembly, and field operation.
These characteristics jointly add to improved system dependability, lowered failing rates, and lower overall expense of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Solutions
AlN ceramic substratums are now basic in sophisticated power modules for commercial motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid cars.
In aerospace and defense, they sustain radar systems, digital war devices, and satellite communications, where performance under severe problems is non-negotiable.
Medical imaging tools, consisting of X-ray generators and MRI systems, also take advantage of AlN’s radiation resistance and signal integrity.
As electrification patterns accelerate throughout transport and power industries, demand for AlN substratums continues to expand, driven by the requirement for small, effective, and trusted power electronics.
4.2 Emerging Assimilation and Sustainable Advancement
Future improvements focus on integrating AlN right into three-dimensional packaging designs, ingrained passive elements, and heterogeneous assimilation platforms combining Si, SiC, and GaN gadgets.
Research study right into nanostructured AlN movies and single-crystal substrates intends to more increase thermal conductivity towards academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Initiatives to minimize production prices via scalable powder synthesis, additive production of complex ceramic structures, and recycling of scrap AlN are gaining energy to boost sustainability.
In addition, modeling tools utilizing limited component evaluation (FEA) and machine learning are being employed to optimize substrate design for details thermal and electric loads.
Finally, light weight aluminum nitride ceramic substratums represent a foundation technology in contemporary electronic devices, distinctively bridging the gap in between electrical insulation and remarkable thermal transmission.
Their duty in making it possible for high-efficiency, high-reliability power systems underscores their strategic relevance in the continuous advancement of digital and energy innovations.
