1. Material Principles and Structural Residences of Alumina Ceramics
1.1 Composition, Crystallography, and Phase Security

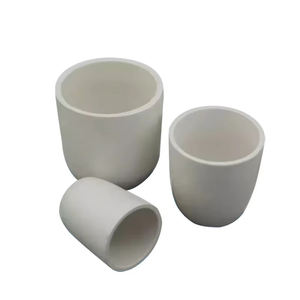

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels produced largely from light weight aluminum oxide (Al two O ₃), among one of the most commonly made use of innovative ceramics because of its extraordinary mix of thermal, mechanical, and chemical security.
The dominant crystalline stage in these crucibles is alpha-alumina (α-Al two O ₃), which belongs to the corundum structure– a hexagonal close-packed setup of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent aluminum ions.
This thick atomic packing causes strong ionic and covalent bonding, providing high melting point (2072 ° C), superb solidity (9 on the Mohs range), and resistance to sneak and contortion at elevated temperature levels.
While pure alumina is excellent for many applications, trace dopants such as magnesium oxide (MgO) are usually added during sintering to inhibit grain development and improve microstructural harmony, therefore boosting mechanical toughness and thermal shock resistance.
The phase pureness of α-Al ₂ O five is essential; transitional alumina phases (e.g., γ, δ, θ) that create at lower temperatures are metastable and undertake volume changes upon conversion to alpha stage, possibly resulting in breaking or failure under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Fabrication
The performance of an alumina crucible is greatly influenced by its microstructure, which is identified throughout powder handling, creating, and sintering stages.
High-purity alumina powders (typically 99.5% to 99.99% Al Two O THREE) are formed right into crucible types using strategies such as uniaxial pressing, isostatic pushing, or slide spreading, followed by sintering at temperature levels in between 1500 ° C and 1700 ° C.
Throughout sintering, diffusion systems drive particle coalescence, decreasing porosity and boosting density– preferably accomplishing > 99% academic thickness to lessen permeability and chemical seepage.
Fine-grained microstructures improve mechanical toughness and resistance to thermal anxiety, while controlled porosity (in some customized grades) can improve thermal shock resistance by dissipating strain power.
Surface surface is additionally vital: a smooth interior surface decreases nucleation websites for undesirable responses and facilitates easy removal of strengthened materials after handling.
Crucible geometry– consisting of wall surface thickness, curvature, and base layout– is optimized to stabilize heat transfer performance, architectural stability, and resistance to thermal slopes throughout fast home heating or air conditioning.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Habits
Alumina crucibles are consistently employed in atmospheres exceeding 1600 ° C, making them essential in high-temperature products research study, steel refining, and crystal growth processes.
They display reduced thermal conductivity (~ 30 W/m · K), which, while limiting heat transfer rates, additionally offers a level of thermal insulation and helps maintain temperature level slopes required for directional solidification or zone melting.
A crucial obstacle is thermal shock resistance– the ability to endure sudden temperature modifications without breaking.
Although alumina has a relatively reduced coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K), its high rigidity and brittleness make it prone to crack when subjected to high thermal slopes, especially throughout fast heating or quenching.
To mitigate this, individuals are advised to follow regulated ramping methods, preheat crucibles gradually, and avoid straight exposure to open fires or chilly surfaces.
Advanced grades incorporate zirconia (ZrO TWO) strengthening or graded structures to improve fracture resistance with mechanisms such as phase transformation strengthening or residual compressive tension generation.
2.2 Chemical Inertness and Compatibility with Responsive Melts
One of the defining benefits of alumina crucibles is their chemical inertness towards a large range of liquified steels, oxides, and salts.
They are highly resistant to fundamental slags, molten glasses, and lots of metal alloys, consisting of iron, nickel, cobalt, and their oxides, which makes them appropriate for usage in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
Nevertheless, they are not widely inert: alumina reacts with highly acidic fluxes such as phosphoric acid or boron trioxide at high temperatures, and it can be rusted by molten alkalis like sodium hydroxide or potassium carbonate.
Specifically crucial is their communication with light weight aluminum metal and aluminum-rich alloys, which can minimize Al ₂ O six via the response: 2Al + Al ₂ O TWO → 3Al ₂ O (suboxide), causing matching and ultimate failure.
Similarly, titanium, zirconium, and rare-earth steels display high sensitivity with alumina, forming aluminides or intricate oxides that endanger crucible stability and infect the melt.
For such applications, alternative crucible products like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are chosen.
3. Applications in Scientific Research Study and Industrial Handling
3.1 Duty in Materials Synthesis and Crystal Development
Alumina crucibles are main to many high-temperature synthesis routes, including solid-state responses, change growth, and melt handling of practical ceramics and intermetallics.
In solid-state chemistry, they act as inert containers for calcining powders, manufacturing phosphors, or preparing forerunner products for lithium-ion battery cathodes.
For crystal development techniques such as the Czochralski or Bridgman techniques, alumina crucibles are made use of to have molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness makes sure minimal contamination of the expanding crystal, while their dimensional security supports reproducible development problems over prolonged periods.
In flux growth, where solitary crystals are expanded from a high-temperature solvent, alumina crucibles have to resist dissolution by the flux medium– typically borates or molybdates– needing cautious choice of crucible grade and handling parameters.
3.2 Usage in Analytical Chemistry and Industrial Melting Workflow
In logical research laboratories, alumina crucibles are conventional equipment in thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), where exact mass measurements are made under regulated environments and temperature ramps.
Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing settings make them excellent for such accuracy measurements.
In commercial settings, alumina crucibles are utilized in induction and resistance heating systems for melting rare-earth elements, alloying, and casting procedures, especially in precious jewelry, oral, and aerospace component manufacturing.
They are additionally used in the manufacturing of technical ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to avoid contamination and make sure uniform home heating.
4. Limitations, Dealing With Practices, and Future Product Enhancements
4.1 Functional Restraints and Best Practices for Durability
Despite their toughness, alumina crucibles have well-defined operational limits that have to be appreciated to ensure security and efficiency.
Thermal shock stays one of the most common reason for failing; consequently, progressive home heating and cooling down cycles are crucial, especially when transitioning with the 400– 600 ° C range where residual stresses can gather.
Mechanical damage from messing up, thermal biking, or contact with tough materials can initiate microcracks that circulate under anxiety.
Cleansing need to be executed very carefully– preventing thermal quenching or abrasive approaches– and used crucibles must be checked for indications of spalling, discoloration, or deformation prior to reuse.
Cross-contamination is one more concern: crucibles utilized for reactive or toxic products should not be repurposed for high-purity synthesis without comprehensive cleaning or need to be thrown out.
4.2 Emerging Fads in Composite and Coated Alumina Systems
To expand the abilities of traditional alumina crucibles, researchers are developing composite and functionally graded products.
Instances include alumina-zirconia (Al two O SIX-ZrO ₂) compounds that boost sturdiness and thermal shock resistance, or alumina-silicon carbide (Al ₂ O SIX-SiC) variations that improve thermal conductivity for more consistent home heating.
Surface coatings with rare-earth oxides (e.g., yttria or scandia) are being explored to develop a diffusion barrier versus reactive metals, consequently broadening the series of suitable melts.
Additionally, additive production of alumina elements is emerging, enabling custom crucible geometries with interior networks for temperature level surveillance or gas flow, opening up brand-new opportunities in procedure control and activator design.
In conclusion, alumina crucibles remain a foundation of high-temperature technology, valued for their reliability, purity, and convenience across scientific and industrial domain names.
Their continued advancement through microstructural engineering and hybrid material layout guarantees that they will certainly stay crucial devices in the development of products science, energy innovations, and progressed manufacturing.
