1. Fundamentals of Silica Sol Chemistry and Colloidal Security
1.1 Structure and Bit Morphology
(Silica Sol)

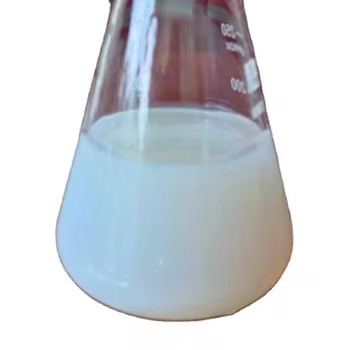

Silica sol is a steady colloidal dispersion consisting of amorphous silicon dioxide (SiO â‚‚) nanoparticles, generally varying from 5 to 100 nanometers in diameter, suspended in a fluid phase– most generally water.
These nanoparticles are composed of a three-dimensional network of SiO â‚„ tetrahedra, forming a porous and extremely reactive surface rich in silanol (Si– OH) groups that control interfacial actions.
The sol state is thermodynamically metastable, kept by electrostatic repulsion between charged fragments; surface area charge emerges from the ionization of silanol groups, which deprotonate over pH ~ 2– 3, yielding negatively billed fragments that push back one another.
Fragment shape is generally round, though synthesis conditions can affect aggregation tendencies and short-range ordering.
The high surface-area-to-volume ratio– frequently going beyond 100 m TWO/ g– makes silica sol incredibly reactive, making it possible for strong interactions with polymers, steels, and biological particles.
1.2 Stablizing Devices and Gelation Shift
Colloidal stability in silica sol is primarily regulated by the equilibrium between van der Waals appealing pressures and electrostatic repulsion, described by the DLVO (Derjaguin– Landau– Verwey– Overbeek) concept.
At low ionic strength and pH worths over the isoelectric point (~ pH 2), the zeta capacity of bits is completely negative to prevent aggregation.
Nonetheless, enhancement of electrolytes, pH adjustment towards neutrality, or solvent evaporation can screen surface costs, decrease repulsion, and trigger particle coalescence, resulting in gelation.
Gelation entails the development of a three-dimensional network through siloxane (Si– O– Si) bond development in between nearby particles, changing the fluid sol right into a stiff, porous xerogel upon drying.
This sol-gel transition is reversible in some systems yet generally leads to permanent structural adjustments, creating the basis for sophisticated ceramic and composite construction.
2. Synthesis Paths and Refine Control
( Silica Sol)
2.1 Stöber Technique and Controlled Development
One of the most commonly recognized approach for creating monodisperse silica sol is the Sțber process, created in 1968, which entails the hydrolysis and condensation of alkoxysilanesРtypically tetraethyl orthosilicate (TEOS)Рin an alcoholic medium with liquid ammonia as a stimulant.
By exactly controlling parameters such as water-to-TEOS ratio, ammonia focus, solvent composition, and reaction temperature level, bit dimension can be tuned reproducibly from ~ 10 nm to over 1 µm with narrow size distribution.
The system continues via nucleation followed by diffusion-limited growth, where silanol teams condense to develop siloxane bonds, developing the silica framework.
This method is ideal for applications requiring uniform round particles, such as chromatographic assistances, calibration requirements, and photonic crystals.
2.2 Acid-Catalyzed and Biological Synthesis Paths
Alternate synthesis techniques include acid-catalyzed hydrolysis, which favors straight condensation and causes even more polydisperse or aggregated bits, often utilized in industrial binders and coverings.
Acidic problems (pH 1– 3) advertise slower hydrolysis however faster condensation between protonated silanols, resulting in irregular or chain-like structures.
Much more lately, bio-inspired and green synthesis approaches have actually arised, making use of silicatein enzymes or plant essences to precipitate silica under ambient conditions, reducing energy usage and chemical waste.
These sustainable techniques are gaining interest for biomedical and environmental applications where purity and biocompatibility are crucial.
In addition, industrial-grade silica sol is frequently generated through ion-exchange procedures from salt silicate remedies, adhered to by electrodialysis to eliminate alkali ions and stabilize the colloid.
3. Functional Qualities and Interfacial Habits
3.1 Surface Area Sensitivity and Modification Strategies
The surface area of silica nanoparticles in sol is controlled by silanol teams, which can participate in hydrogen bonding, adsorption, and covalent grafting with organosilanes.
Surface modification making use of combining agents such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane presents useful groups (e.g.,– NH TWO,– CH THREE) that change hydrophilicity, sensitivity, and compatibility with organic matrices.
These modifications make it possible for silica sol to function as a compatibilizer in crossbreed organic-inorganic composites, boosting dispersion in polymers and improving mechanical, thermal, or barrier homes.
Unmodified silica sol exhibits solid hydrophilicity, making it perfect for aqueous systems, while customized variations can be spread in nonpolar solvents for specialized finishes and inks.
3.2 Rheological and Optical Characteristics
Silica sol diffusions commonly display Newtonian circulation habits at reduced concentrations, yet thickness increases with bit loading and can move to shear-thinning under high solids web content or partial aggregation.
This rheological tunability is exploited in layers, where controlled flow and progressing are important for consistent film development.
Optically, silica sol is clear in the noticeable spectrum as a result of the sub-wavelength size of fragments, which reduces light spreading.
This transparency permits its usage in clear finishes, anti-reflective films, and optical adhesives without jeopardizing aesthetic clarity.
When dried, the resulting silica film keeps transparency while offering hardness, abrasion resistance, and thermal stability up to ~ 600 ° C.
4. Industrial and Advanced Applications
4.1 Coatings, Composites, and Ceramics
Silica sol is extensively made use of in surface area finishings for paper, fabrics, steels, and building and construction products to enhance water resistance, scratch resistance, and sturdiness.
In paper sizing, it enhances printability and moisture barrier residential properties; in shop binders, it changes organic materials with eco-friendly inorganic alternatives that break down cleanly throughout spreading.
As a forerunner for silica glass and porcelains, silica sol enables low-temperature fabrication of thick, high-purity parts by means of sol-gel processing, avoiding the high melting factor of quartz.
It is likewise employed in financial investment casting, where it develops solid, refractory mold and mildews with fine surface finish.
4.2 Biomedical, Catalytic, and Energy Applications
In biomedicine, silica sol works as a system for medicine shipment systems, biosensors, and analysis imaging, where surface area functionalization permits targeted binding and controlled launch.
Mesoporous silica nanoparticles (MSNs), originated from templated silica sol, use high packing capacity and stimuli-responsive launch systems.
As a stimulant support, silica sol gives a high-surface-area matrix for paralyzing steel nanoparticles (e.g., Pt, Au, Pd), improving diffusion and catalytic performance in chemical makeovers.
In energy, silica sol is utilized in battery separators to enhance thermal security, in gas cell membranes to improve proton conductivity, and in solar panel encapsulants to protect against dampness and mechanical stress.
In summary, silica sol represents a foundational nanomaterial that bridges molecular chemistry and macroscopic functionality.
Its controllable synthesis, tunable surface chemistry, and functional handling enable transformative applications across markets, from sustainable production to innovative health care and energy systems.
As nanotechnology develops, silica sol remains to act as a design system for designing wise, multifunctional colloidal products.
