Bearings are often called the “joints of industry.” Obtaining the choice right directly affects your tools’s dependability, life span, and upkeep prices. Many bearing failures don’t come from poor quality– they come from wrong choices. Things like tons computation errors, overlooking speed limits, or selecting the incorrect lubrication technique. These tiny errors can cause equipment to break down early in its life span. This overview strolls you via the entire option procedure, giving engineers and purchase specialists a clear path from analyzing working problems to confirming the right bearing model.
Component One: What You Required to Know Prior To Beginning
Prior to you open up any kind of bearing catalog, ask yourself one question: Exactly what does this equipment need the birthing to do? The solution lies in five vital locations:
1. Tons Characteristics
Tons is the primary factor in bearing option. You require to find out three points:
Direction: Is it radial lots (perpendicular to the shaft), axial tons (parallel to the shaft), or a combination of both?
Size: Is it light, modest, or heavy? Any kind of impact loads?
Nature: Is the lots constant or changing? Exactly how often do effect lots occur and how strong are they?
Take a belt conveyor for example. The bearings at the drive end tackle radial lots from belt stress, the weight of the belt and rollers, plus the shaft setting up. When calculating, you need to consider various operating problems– startup, normal operating, braking– and make use of the worst-case circumstance for your design.
2. Rate Problems

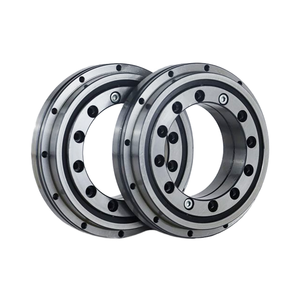

(bearings for steel mill)
Rate is another important variable affecting birthing life. According to tiredness life theory, birthing life has an inverse partnership with rate. For variable rate problems, you need to calculate the equal rate. Take a rotary kiln assistance roller– its speed may vary from 0.5 to 2.5 r/min. You ‘d need to weight the running time at each rate to get an equivalent value.
Something to look out for: knowing just the maximum speed can screw up your lubrication technique. The lube you select based upon full throttle might not develop a correct oil film at reduced speeds. Also, if your maker has long still durations, you need to state that– or else close-by devices resonances might create false brinelling damage.
3. Required Life Span
Bearing life span is normally expressed as L10h (the variety of hours that 90% of a bearing group will get to before tiredness spalling shows up). A typical blunder is choosing an overly long life– as soon as L10h surpasses 100,000 hours, the bearing size gets also large. It comes to be tougher to lubricate, torque boosts, and it becomes much more sensitive to minimal tons. In the end, it could fall short for reasons aside from tiredness.
4. Space Restraints
You ought to understand your offered room limits from the start– shaft size variety, housing bore dimension, axial length restrictions. As soon as you understand the matching shaft diameter and available space, you can quickly narrow down your alternatives.
5. Running Accuracy Requirements
The majority of applications do simply fine with conventional accuracy bearings. But also for high-speed or high-precision tools like equipment device spindles, you’ll need P5, P4, and even greater grades. Just keep in mind that going for greater precision without an actual demand will certainly drive up prices considerably. Match the grade to your actual needs.
Part Two: Matching Birthing Types to Functioning Conditions
When you have those parameters clear, the next action is to match the ideal bearing kind based on tons instructions, dimension, rate, and misalignment resistance.
1. Lots Direction: Radial, Axial, or Incorporated?

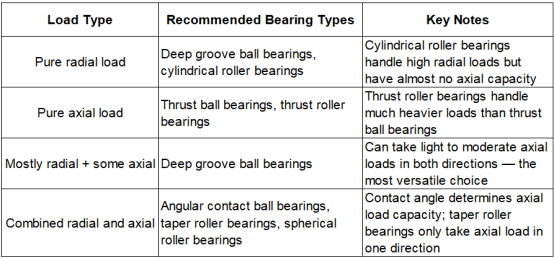

This is one of the most fundamental filter. It can point you to a few prospects immediately:
When the axial-to-radial load ratio (Fa/Fr) adjustments, your option reasoning adjustments too. At low ratios, choose deep groove round bearings. At modest proportions, use small-contact-angle angular call bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or consider incorporating a thrust bearing with a radial bearing.
( Radial)
2. Lots Dimension: Sphere Bearings or Roller Bearings?
This is a traditional choice:
Light or moderate tons: Opt for ball bearings (deep groove or angular contact). The point get in touch with in between balls and raceways gives reduced rubbing, making them ideal for tool to broadband.
Hefty or effect tons: You should use roller bearings (round, spherical, or taper). Line call in between rollers and raceways provides much higher lots ability and far better effect resistance.
3. Rate: Round Bearings for Broadband, Roller Bearings for Low
Usually talking, sphere bearings have greater speed limitations than roller bearings. For high-speed applications (above 1000 r/min), placed round bearings at the top of your listing. When you need the highest possible rate with pure radial lots, open deep groove ball bearings are your best choice. For combined tons at high speed, angular get in touch with sphere bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have reasonably reduced rate limits. They’re primarily suited for low-to-medium speed, heavy-load problems.
4. Misalignment Resistance: Do You Need Self-Aligning?
This one frequently gets overlooked however it’s very essential. You should consider self-aligning bearings when:
Birthing real estate bores don’t line up well
The shaft isn’t tight sufficient and bends throughout operation
The bearing period is long and thermal development creates angular imbalance
You’re using different split housings (like pillow block bearings)
Spherical roller bearings and round bearings have scooped external ring raceways. This enables a specific quantity of angular misalignment between the internal and outer rings without hazardous side anxiety. They can compensate for both dynamic deflection and fixed setup mistakes.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely minimal self-aligning capacity. Also a small angular misalignment can cause stress focus at the roller finishes, bring about high edge stress that substantially reduce bearing life. Deep groove round bearings do have some self-aligning ability, yet the allowable angle is small– surpassing it will certainly lower life too.
5. Axial Expansion Payment: Fixed End or Floating End?
Long shafts expand and agreement with temperature adjustments during procedure. That suggests you need to establish your bearing setup with one set end and one floating end.
NU and N series round roller bearings have no flanges on the internal ring (or on one side). This lets the shaft move openly in the axial instructions about the housing– making them optimal as floating-end bearings. NJ and NUP series can give axial positioning in one or both directions, so they work well as fixed-end bearings. This configuration is extremely typical in transmissions and electric motors.
Part 3: BMB Product at a Glance

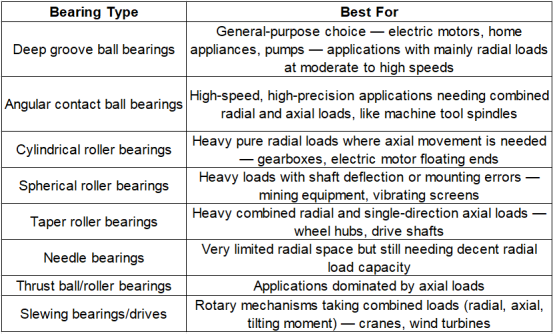

BMB offers a full range of commercial bearings, covering all the significant kinds we have actually discussed. This quick referral table attaches the option principles over straight to specific product categories:
Component 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Requirement accuracy (P0) helps the huge bulk of basic machinery. For precision devices like device pins or aerospace components, you’ll need P5 or greater. Tighter precision means tighter dimensional tolerances and far better running accuracy– however also higher prices.
2. Inner Clearance and Preload
Bearings require to preserve appropriate inner clearance after installation. Way too much clearance brings about resonance and sound. Insufficient, and thermal development can create the bearing to take. In special cases like machine tool pins, preload (applying negative clearance) is used to improve system rigidness and rotational precision.
3. Lubricant Selection
Lubrication is a make-or-break factor for bearing life. Grease works for a lot of moderate-speed and temperature applications– it’s basic to secure and can run maintenance-free for extended periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates heat better. When selecting a lubricant, examine the speed element (ndm value). Do not simply choose based on maximum speed– the oil you select may not form a correct film at reduced rates.
4. Sealing Program
Pick the seal kind based upon your environment: call seals keep dirt out well yet include some rubbing; non-contact seals help broadband however offer less defense against contamination; open bearings count on exterior securing systems.
Component 5: Life Calculation– From Theory to Technique
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your selected bearing will actually fulfill the predicted life span. This is where fundamental score life computation is available in.
The basic score life L10 formula (ISO 281 requirement):
For round bearings: L10 = (C/P) ³ × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: standard dynamic tons rating (kN)– found in the product brochure
P: comparable dynamic lots (kN)– takes both radial and axial loads into account
The equivalent dynamic lots P is computed as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial lots
X and Y are coefficients that depend upon bearing type and the Fa/Fr proportion– examine the directory for these values
For more requiring problems, you can apply adjustment aspects: Ln = a1 × a2 × a3 × L10
a1 is the integrity aspect (a1 = 1 for 90% reliability, regarding 0.21 for 99%)
a2 is the product aspect (high-grade bearing steel can get to 1.5 to 2)
a3 is the operating problems aspect (excellent lubrication and sanitation can offer 2 to 3)
With this estimation, engineers can confirm that the selected bearing meets the required life span. It additionally assists compare several alternatives and make data-driven decisions.
This overview has actually strolled you through the full selection course– from assessing working conditions, to matching the right bearing kind, to validating life span. Recognizing and applying this method will certainly help you make accurate, effective, and cost-effective bearing choices throughout a vast array of commercial applications.
