1. Material Fundamentals and Structural Characteristic
1.1 Crystal Chemistry and Polymorphism

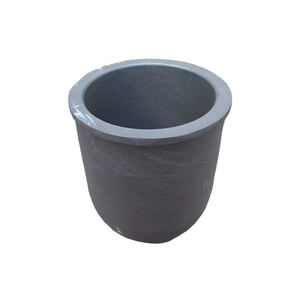

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral latticework, creating one of one of the most thermally and chemically durable products known.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal structures being most relevant for high-temperature applications.
The strong Si– C bonds, with bond power surpassing 300 kJ/mol, confer outstanding hardness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is favored because of its capability to maintain architectural integrity under severe thermal gradients and harsh molten atmospheres.
Unlike oxide ceramics, SiC does not undertake disruptive stage changes approximately its sublimation factor (~ 2700 ° C), making it suitable for sustained procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining attribute of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises uniform heat distribution and minimizes thermal stress and anxiety during quick heating or air conditioning.
This property contrasts dramatically with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are vulnerable to breaking under thermal shock.
SiC also exhibits outstanding mechanical toughness at elevated temperatures, keeping over 80% of its room-temperature flexural strength (as much as 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further boosts resistance to thermal shock, a critical factor in duplicated biking between ambient and functional temperatures.
Furthermore, SiC shows superior wear and abrasion resistance, making sure long life span in settings entailing mechanical handling or turbulent thaw circulation.
2. Production Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Strategies
Commercial SiC crucibles are largely produced through pressureless sintering, reaction bonding, or warm pressing, each offering distinct advantages in expense, purity, and efficiency.
Pressureless sintering involves condensing fine SiC powder with sintering aids such as boron and carbon, adhered to by high-temperature treatment (2000– 2200 ° C )in inert atmosphere to attain near-theoretical thickness.
This approach returns high-purity, high-strength crucibles suitable for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is created by penetrating a porous carbon preform with molten silicon, which reacts to form β-SiC in situ, causing a composite of SiC and residual silicon.
While slightly reduced in thermal conductivity because of metal silicon incorporations, RBSC provides exceptional dimensional stability and lower production price, making it popular for large industrial use.
Hot-pressed SiC, though extra expensive, provides the highest density and purity, booked for ultra-demanding applications such as single-crystal growth.
2.2 Surface High Quality and Geometric Precision
Post-sintering machining, consisting of grinding and splashing, ensures exact dimensional tolerances and smooth inner surface areas that lessen nucleation websites and minimize contamination risk.
Surface roughness is thoroughly regulated to prevent thaw adhesion and promote very easy release of strengthened materials.
Crucible geometry– such as wall density, taper angle, and bottom curvature– is optimized to balance thermal mass, architectural stamina, and compatibility with furnace burner.
Customized designs suit specific thaw quantities, home heating profiles, and material reactivity, guaranteeing optimal performance throughout varied industrial procedures.
Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, verifies microstructural homogeneity and absence of issues like pores or cracks.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Aggressive Environments
SiC crucibles display extraordinary resistance to chemical strike by molten steels, slags, and non-oxidizing salts, surpassing typical graphite and oxide porcelains.
They are secure touching liquified aluminum, copper, silver, and their alloys, standing up to wetting and dissolution due to low interfacial energy and development of protective surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles avoid metallic contamination that could degrade electronic properties.
However, under extremely oxidizing problems or in the visibility of alkaline changes, SiC can oxidize to create silica (SiO ₂), which might react even more to create low-melting-point silicates.
For that reason, SiC is ideal suited for neutral or lowering ambiences, where its stability is taken full advantage of.
3.2 Limitations and Compatibility Considerations
In spite of its toughness, SiC is not globally inert; it responds with particular liquified products, especially iron-group steels (Fe, Ni, Co) at high temperatures via carburization and dissolution processes.
In molten steel handling, SiC crucibles degrade swiftly and are consequently prevented.
In a similar way, alkali and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, launching carbon and developing silicides, restricting their usage in battery material synthesis or reactive steel casting.
For liquified glass and ceramics, SiC is generally compatible but may present trace silicon right into extremely sensitive optical or digital glasses.
Comprehending these material-specific interactions is crucial for picking the proper crucible kind and ensuring procedure pureness and crucible long life.
4. Industrial Applications and Technological Advancement
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are indispensable in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they hold up against prolonged exposure to molten silicon at ~ 1420 ° C.
Their thermal security guarantees consistent formation and reduces misplacement thickness, directly affecting photovoltaic or pv effectiveness.
In shops, SiC crucibles are utilized for melting non-ferrous metals such as light weight aluminum and brass, using longer life span and decreased dross development compared to clay-graphite choices.
They are also employed in high-temperature research laboratories for thermogravimetric analysis, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic substances.
4.2 Future Patterns and Advanced Product Assimilation
Arising applications include the use of SiC crucibles in next-generation nuclear materials screening and molten salt activators, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FOUR) are being related to SiC surface areas to further enhance chemical inertness and protect against silicon diffusion in ultra-high-purity processes.
Additive manufacturing of SiC components using binder jetting or stereolithography is under advancement, promising complicated geometries and quick prototyping for specialized crucible layouts.
As demand expands for energy-efficient, resilient, and contamination-free high-temperature processing, silicon carbide crucibles will remain a keystone innovation in advanced products making.
To conclude, silicon carbide crucibles represent an essential enabling element in high-temperature commercial and scientific processes.
Their exceptional mix of thermal stability, mechanical stamina, and chemical resistance makes them the material of option for applications where efficiency and integrity are critical.
