Intro: Trick tools in power electronic devices
Silicon-controlled rectifiers (SCRs), likewise called thyristors, are semiconductor power devices with a four-layer three-way joint framework (PNPN). Considering that its intro in the 1950s, SCRs have been widely utilized in commercial automation, power systems, home appliance control and various other areas because of their high withstand voltage, huge current bring ability, rapid reaction and easy control. With the advancement of technology, SCRs have actually progressed into numerous kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences in between these kinds are not just reflected in the framework and working concept, however likewise determine their applicability in different application situations. This write-up will begin with a technical perspective, combined with specific parameters, to deeply assess the primary distinctions and typical uses of these 4 SCRs.
Unidirectional SCR: Fundamental and secure application core
Unidirectional SCR is one of the most basic and usual type of thyristor. Its structure is a four-layer three-junction PNPN setup, consisting of 3 electrodes: anode (A), cathode (K) and entrance (G). It only allows current to stream in one instructions (from anode to cathode) and switches on after eviction is caused. When switched on, even if eviction signal is gotten rid of, as long as the anode current is greater than the holding current (generally much less than 100mA), the SCR continues to be on.

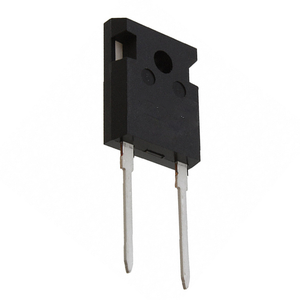

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and existing tolerance, with a forward recurring height voltage (V DRM) of approximately 6500V and a rated on-state ordinary current (ITAV) of as much as 5000A. Therefore, it is widely used in DC electric motor control, industrial heating unit, uninterruptible power supply (UPS) rectification components, power conditioning gadgets and other occasions that call for continual conduction and high power processing. Its benefits are simple structure, low cost and high integrity, and it is a core component of many standard power control systems.
Bidirectional SCR (TRIAC): Ideal for AC control
Unlike unidirectional SCR, bidirectional SCR, likewise known as TRIAC, can attain bidirectional transmission in both favorable and unfavorable half cycles. This framework includes two anti-parallel SCRs, which allow TRIAC to be activated and switched on at any moment in the air conditioner cycle without altering the circuit connection approach. The in proportion conduction voltage variety of TRIAC is typically ± 400 ~ 800V, the maximum lots current is about 100A, and the trigger current is much less than 50mA.
Because of the bidirectional transmission features of TRIAC, it is particularly suitable for air conditioner dimming and rate control in home appliances and consumer electronics. For example, tools such as lamp dimmers, fan controllers, and ac system follower speed regulators all rely upon TRIAC to accomplish smooth power guideline. Furthermore, TRIAC also has a reduced driving power requirement and is suitable for incorporated style, so it has been extensively made use of in wise home systems and tiny home appliances. Although the power density and changing speed of TRIAC are not as good as those of new power gadgets, its affordable and practical use make it a crucial player in the area of tiny and moderate power air conditioning control.
Entrance Turn-Off Thyristor (GTO): A high-performance representative of active control
Gateway Turn-Off Thyristor (GTO) is a high-performance power tool created on the basis of traditional SCR. Unlike ordinary SCR, which can only be switched off passively, GTO can be shut off proactively by using an unfavorable pulse existing to the gate, therefore attaining more versatile control. This function makes GTO perform well in systems that call for constant start-stop or fast feedback.
(Thyristor Rectifier)
The technical parameters of GTO show that it has extremely high power handling capacity: the turn-off gain is about 4 ~ 5, the maximum operating voltage can get to 6000V, and the maximum operating current depends on 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These performance signs make GTO widely used in high-power situations such as electric locomotive grip systems, large inverters, commercial motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is relatively intricate and has high switching losses, its performance under high power and high vibrant action demands is still irreplaceable.
Light-controlled thyristor (LTT): A reliable choice in the high-voltage isolation atmosphere
Light-controlled thyristor (LTT) utilizes optical signals instead of electric signals to trigger transmission, which is its greatest feature that distinguishes it from other types of SCRs. The optical trigger wavelength of LTT is generally in between 850nm and 950nm, the response time is gauged in milliseconds, and the insulation degree can be as high as 100kV or above. This optoelectronic isolation system greatly enhances the system’s anti-electromagnetic interference ability and security.
LTT is mainly utilized in ultra-high voltage straight current transmission (UHVDC), power system relay defense devices, electro-magnetic compatibility protection in medical equipment, and military radar communication systems and so on, which have very high demands for safety and security and stability. For example, lots of converter stations in China’s “West-to-East Power Transmission” task have actually adopted LTT-based converter shutoff modules to ensure stable procedure under incredibly high voltage problems. Some advanced LTTs can also be integrated with gateway control to achieve bidirectional conduction or turn-off features, even more expanding their application variety and making them an ideal choice for addressing high-voltage and high-current control troubles.
